Ladder Type cable tray
Ladder Cable Tray
Ladder-type (LTCT) heavy-duty cable support system . PTCT Trays available in the below material.
- Pre-coated
- Hot Dip Galvanized Steel
- Stainless Steel
- Powder Coated
- Enamel Spray coated. These cable trays provide easily to fixing cable to provide clamping, ties and fastening to ensure cables uniformly management.
H.D. (Hot Dip) Ladder type cable trays
| CAT. NO. | HEIGHT (H) | THK.(T) | WIDTH(W) | LENGTH(L) |
|---|---|---|---|---|
| VE-P-HD-50 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 50 | 2500 |
| VE-P-HD-100 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 100 | 2500 |
| VE-P-HD-150 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 150 | 2500 |
| VE-P-HD-200 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 200 | 2500 |
| VE-P-HD-300 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 300 | 2500 |
| VE-P-HD-450 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 450 | 2500 |
| VE-P-HD-600 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 600 | 2500 |
| VE-P-HD-750 | 25/50/75/100 | 1.6/ 2.0 | 750 | 2500 |
| VE-P-HD-900 | 25/50/75/100 | 1.6/ 2.0 | 900 | 2500 |
| VE-P-HD-1000 | 25/50/75/100 | 1.6/ 2.0 | 1000 | 2500 |
M.S. Ladder type cable trays
| CAT. NO. | HEIGHT (H) | THK.(T) | WIDTH(W) | LENGTH(L) |
|---|---|---|---|---|
| VE-P-MS-50 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 50 | 2500 |
| VE-P-MS-100 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 100 | 2500 |
| VE-P-MS-150 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 150 | 2500 |
| VE-P-MS-200 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 200 | 2500 |
| VE-P-MS-300 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 300 | 2500 |
| VE-P-MS-450 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 450 | 2500 |
| VE-P-MS-600 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 600 | 2500 |
| VE-P-MS-750 | 25/50/75/100 | 1.6/ 2.0 | 750 | 2500 |
| VE-P-MS-900 | 25/50/75/100 | 1.6/ 2.0 | 900 | 2500 |
| VE-P-MS-1000 | 25/50/75/100 | 1.6/ 2.0 | 1000 | 2500 |
G.I. Ladder type cable trays
| CAT. NO. | HEIGHT (H) | THK.(T) | WIDTH(W) | LENGTH(L) |
|---|---|---|---|---|
| VE-P-GI-50 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 50 | 2500 |
| VE-P-GI-100 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 100 | 2500 |
| VE-P-GI-150 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 150 | 2500 |
| VE-P-GI-200 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 200 | 2500 |
| VE-P-GI-300 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 300 | 2500 |
| VE-P-GI-450 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 450 | 2500 |
| VE-P-GI-600 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 600 | 2500 |
| VE-P-GI-750 | 25/50/75/100 | 1.6/ 2.0 | 750 | 2500 |
| VE-P-GI-900 | 25/50/75/100 | 1.6/ 2.0 | 900 | 2500 |
| VE-P-GI-1000 | 25/50/75/100 | 1.6/ 2.0 | 1000 | 2500 |
P.C.(Powder coted) Ladder type cable trays
| CAT. NO. | HEIGHT (H) | THK.(T) | WIDTH(W) | LENGTH(L) |
|---|---|---|---|---|
| VE-P-PC-50 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 50 | 2500 |
| VE-P-PC-100 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 100 | 2500 |
| VE-P-PC-150 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 150 | 2500 |
| VE-P-PC-200 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 200 | 2500 |
| VE-P-PC-300 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 300 | 2500 |
| VE-P-PC-450 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 450 | 2500 |
| VE-P-PC-600 | 25/50/75/100 | 1.2 / 1.6/ 2.0 | 600 | 2500 |
| VE-P-PC-750 | 25/50/75/100 | 1.6/ 2.0 | 750 | 2500 |
| VE-P-PC-900 | 25/50/75/100 | 1.6/ 2.0 | 900 | 2500 |
| VE-P-PC-1000 | 25/50/75/100 | 1.6/ 2.0 | 1000 | 2500 |

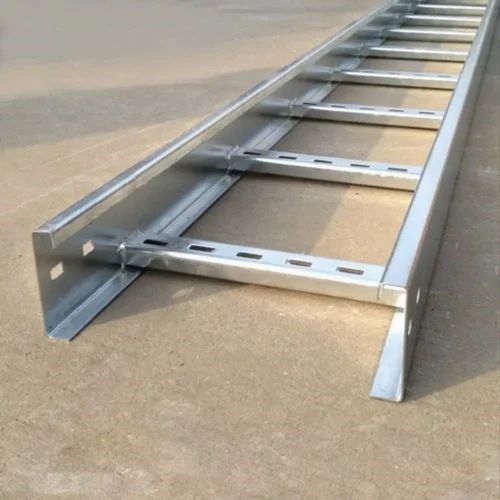

Hot dip Galvanized Ladder Type Cable tray

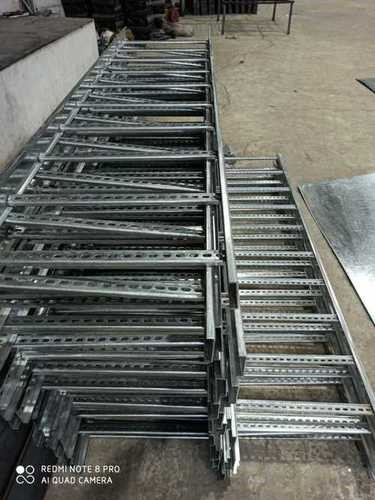

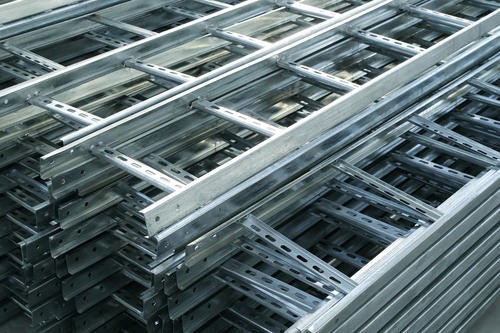

GI Ladder Type Cable tray

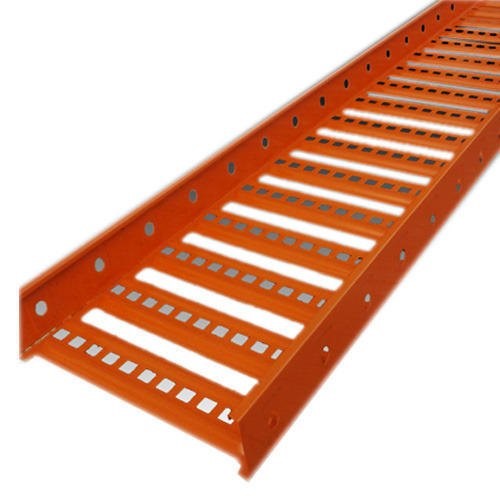

Powder Coated Ladder Type Cable tray
M.S Ladder Type Cable tray
