Cable Management Structures
Cable Management Structures for Organised Installations

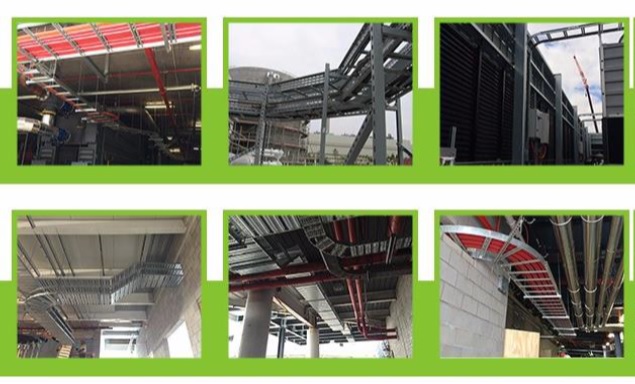

Cable management structures help support and organise cables in electrical, industrial, and commercial installations. A well-planned arrangement keeps cable routes organised and can make inspection and maintenance easier.
The type of structure required depends on the installation layout, cable quantity, load requirements, available space, and surrounding environment. Selecting suitable components during the planning stage can help ensure that the cable support system meets the project’s needs.
Vaidavi Enterprises offers cable management products for different installation requirements. Customers can contact the team to enquire about available structures and confirm the relevant technical specifications. Our range also includes perforated cable trays and ladder cable trays, which are often used alongside these structures.
Key Features and Benefits of Cable Management Structures
1. Structured Cable Routing
Cable management structures help keep cables arranged along defined paths. This supports a neat installation and helps maintain an organised layout around electrical systems and equipment.
2. Better Use of Installation Space
A properly planned cable support arrangement can help use available space efficiently. Cable routes should be positioned with suitable clearances from walkways, machinery, and other services.
3. Convenient Inspection and Maintenance
Organised cable routes can make it easier for technicians to identify cables and inspect the installation. Suitable access should be included in the design to support maintenance activities.
4. Application-Based Selection
Every project has different requirements. Selecting structures according to cable loads, installation conditions, dimensions, and environmental exposure helps ensure suitability for the intended application. For heavier cable loads, you may want to look at our heavy angular ladder cable tray.
5. Compatibility with Cable Support Components

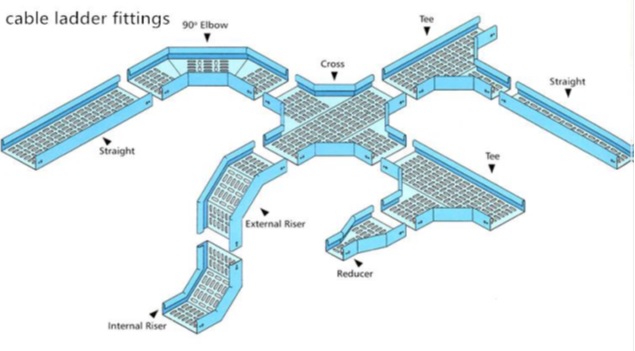

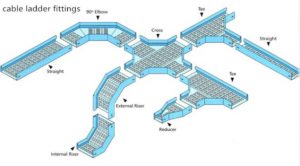

Cable management structures may be used with suitable cable trays, brackets, fasteners, and other support components. Our cable support accessories and fasteners page lists the supporting parts. These parts should be compatible with one another and meet the project’s technical requirements.
Applications of Cable Management Structures
Cable management structures may be considered for several types of installations, depending on their design and specifications.
- Industrial facilities: For organising cable routes around production equipment and electrical systems. See our industrial products range.
- Commercial buildings: For supporting cables along planned service routes.
- Electrical installations: For arranging cables between electrical panels and connected equipment.
- Machinery areas: For managing cable routes around suitable machines and equipment.
- Infrastructure projects: For cable support arrangements designed according to project requirements.
- Utility areas: For keeping cables organised in designated service spaces.
The appropriate structure should be selected based on the installation layout, cable load, environmental conditions, and applicable engineering requirements.
How to Choose the Right Cable Management Structure
Before selecting a cable management structure, consider the following factors:
- Cable quantity and arrangement: Identify the number, type, and routing requirements of the cables.
- Load requirements: Confirm the total cable weight and the load the structure must support.
- Available space: Check the installation area, dimensions, and required clearances.
- Material and finish: Consider the environment and the required corrosion protection.
- Installation conditions: Determine whether the structure will be used indoors or outdoors and whether it may be exposed to moisture, heat, or chemicals.
- Component compatibility: Ensure that trays, brackets, fasteners, and supports work together as intended.
- Maintenance access: Plan the layout to allow appropriate inspection and servicing.
Confirm the product specifications, load capacity, and installation requirements before placing an order. If you are comparing tray designs, read about the difference between a perforated cable tray and a solid bottom cable tray.
